4. DevOps

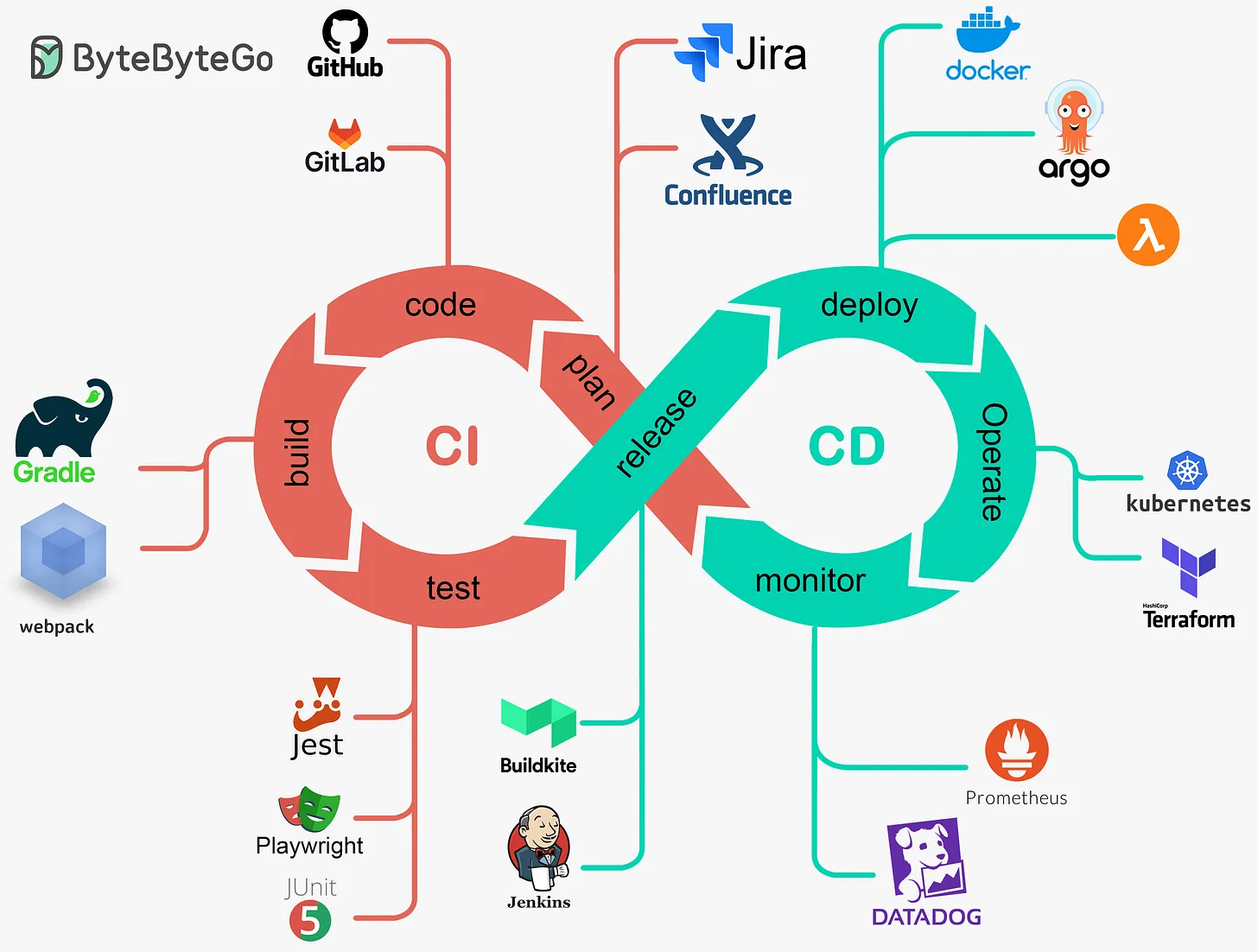

DevOps practices aim to shorten the software development lifecycle by automating the build, test, and deployment stages. Two key practices underpin this automation¹:

• Continuous Integration (CI) — developers merge changes frequently; each merge triggers an automated build and test cycle.
• Continuous Delivery (CD) — every change that passes CI is automatically packaged and made ready to deploy to any environment.

flowchart LR
    dev([Developer]) -->|git push| scm[Source Control]
    scm -->|webhook / poll| ci[CI Server\nJenkins]
    subgraph pipeline [Pipeline]
        direction LR
        build[Build] --> test[Test] --> image[Package\nDocker Image] --> push[Push\nRegistry]
    end
    ci --> pipeline
    push -->|deploy| env([Target\nEnvironment])
    classDef highlight fill:#FCBE3E
    class ci highlight

Jenkins is one of the most widely adopted open-source automation servers. It orchestrates CI/CD pipelines through a rich plugin ecosystem and supports Pipeline as Code — pipeline definitions committed to the repository alongside application code in a file called Jenkinsfile².

1. Setup — Containerized Jenkins

Running Jenkins inside Docker keeps the host machine clean and makes the environment reproducible across machines.

📁 api/
📁 jenkins/
└──  compose.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

name: ops

services:

  jenkins:
    container_name: jenkins
    build:
      dockerfile_inline: |
        FROM jenkins/jenkins:jdk25
        USER root

        # Install Tools
        RUN apt-get update && apt-get install -y lsb-release net-tools iputils-ping maven curl

        # Install Docker
        RUN curl -fsSLo /usr/share/keyrings/docker-archive-keyring.asc \
          https://download.docker.com/linux/debian/gpg
        RUN echo "deb [arch=$(dpkg --print-architecture) \
          signed-by=/usr/share/keyrings/docker-archive-keyring.asc] \
          https://download.docker.com/linux/debian \
          $(lsb_release -cs) stable" > /etc/apt/sources.list.d/docker.list
        RUN apt-get update && apt-get install -y docker-ce

        # Install kubectl
        RUN curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/$(dpkg --print-architecture)/kubectl" \
            && chmod +x kubectl \
            && mv kubectl /usr/local/bin/kubectl

        # Install AWS CLI
        RUN curl "https://awscli.amazonaws.com/awscli-exe-linux-$(arch).zip" -o "awscliv2.zip" && \
            echo "Unzipping AWS CLI..." && \
            unzip awscliv2.zip && \
            ./aws/install --update && \
            rm awscliv2.zip && \
            rm -rf ./aws

        RUN usermod -aG docker jenkins
    ports:
      - 9080:8080
    volumes:
      - ${CONFIG:-./config}/jenkins:/var/jenkins_home
      - /var/run/docker.sock:/var/run/docker.sock
    restart: always

The compose.yaml builds a custom image on top of jenkins/jenkins:jdk25 with extra tooling pre-installed:

The Jenkins process is added to the docker group so that pipelines can invoke docker commands without requiring root. The host Docker socket (/var/run/docker.sock) is bind-mounted into the container for this purpose³.

Start the server:

jenkins/# docker compose up -d --build

[+] Running 2/2
 ✔ jenkins Created              0.1s
 ✔ Container jenkins Started    0.2s

Jenkins is now available at http://localhost:9080/.

2. Initial Configuration

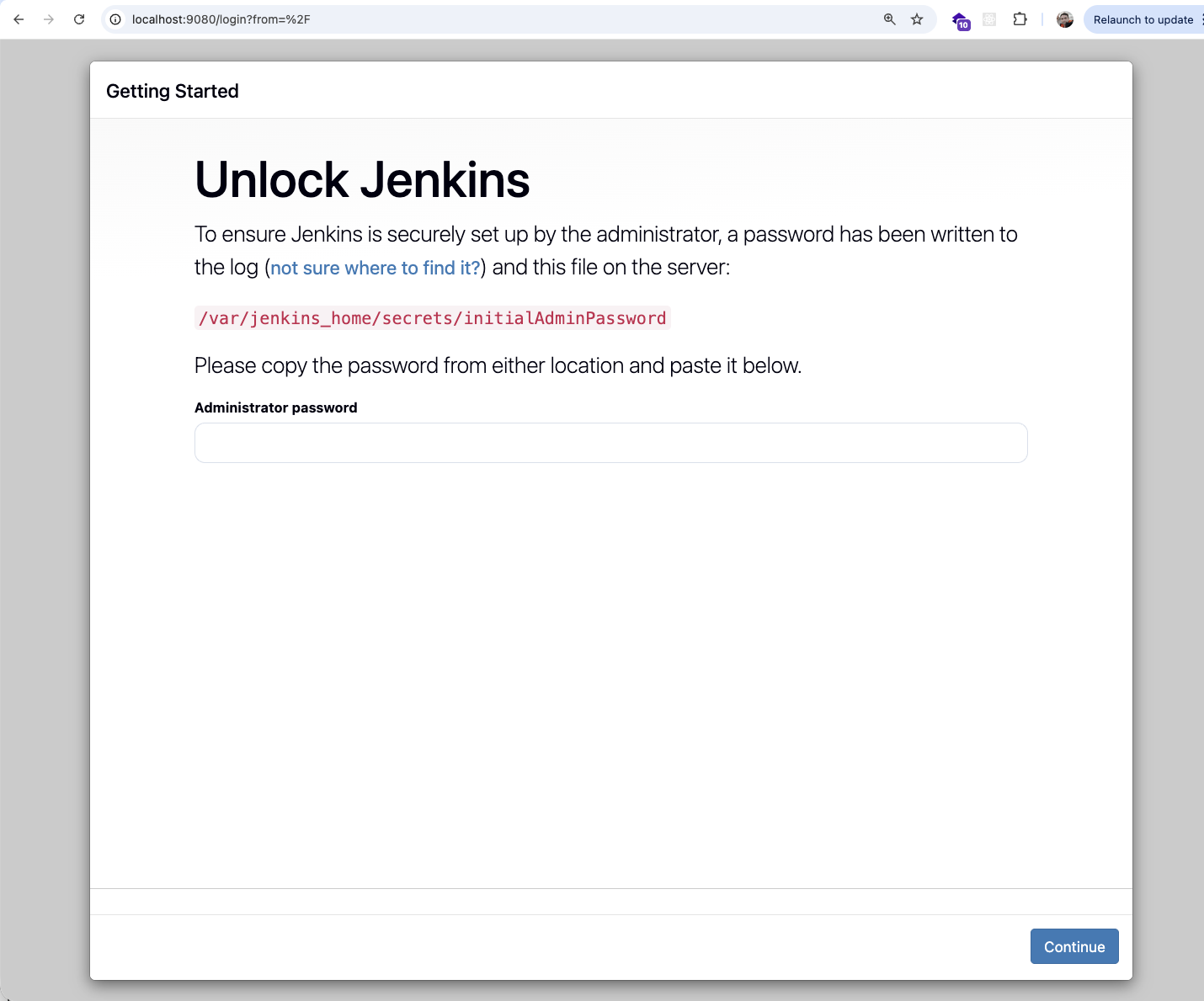

Unlock Jenkins

On first start, Jenkins generates a random initial admin password to prevent unauthorised access⁴. Open the UI and enter it when prompted:

Retrieve the password with either command:

docker logs jenkins 2>&1 | grep -A 3 "initialAdminPassword"

docker exec jenkins cat /var/jenkins_home/secrets/initialAdminPassword

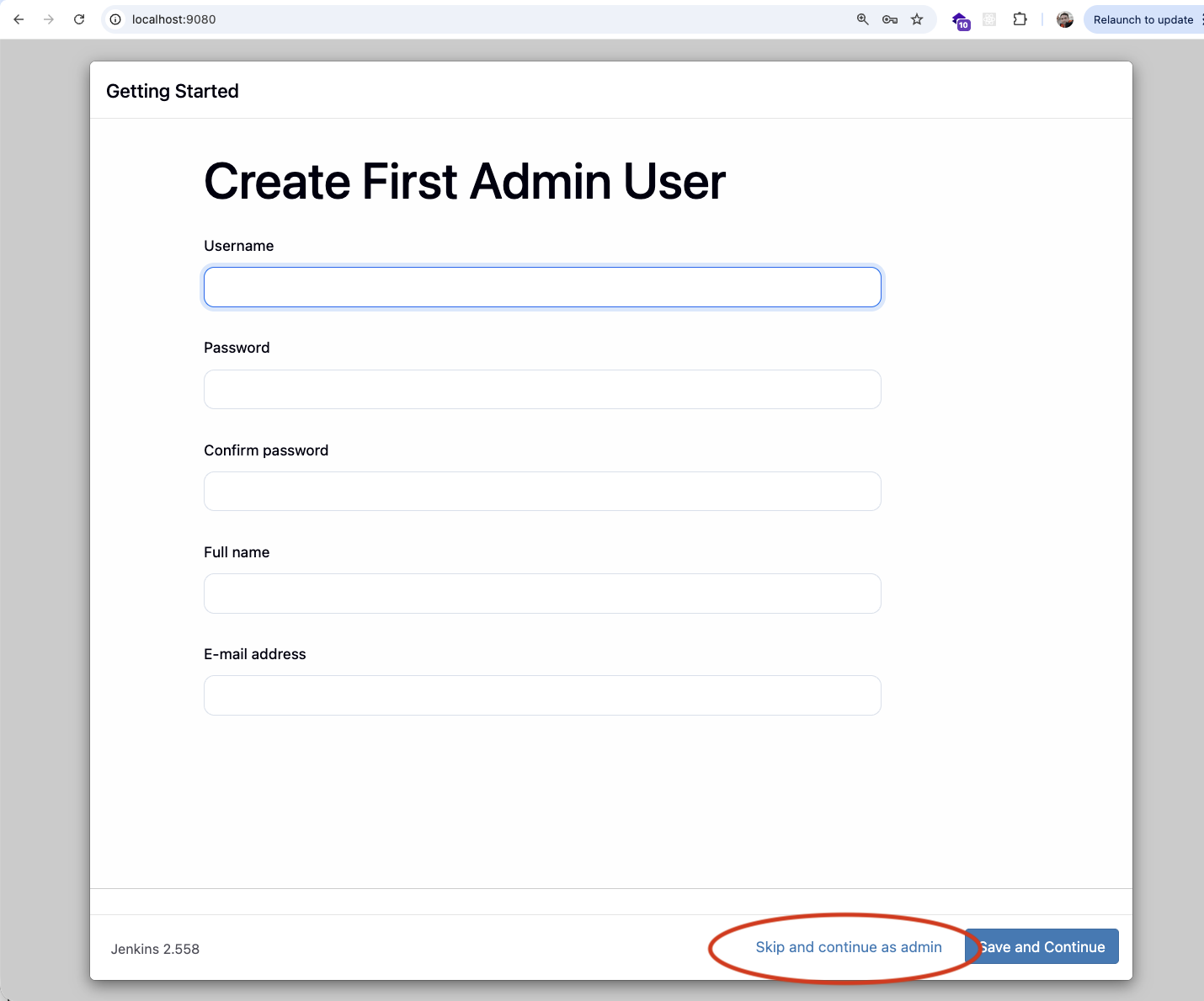

After entering the password, choose Install suggested plugins and create an admin user.

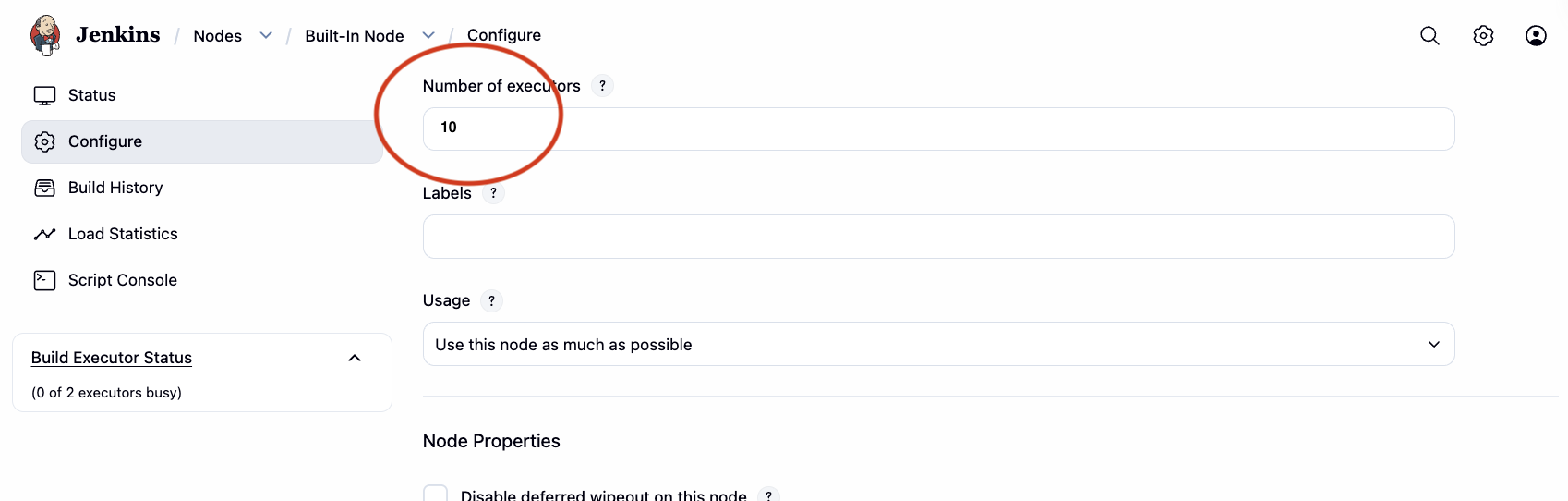

Number of Executors

An executor is a slot where Jenkins runs one pipeline stage or job. The default is 2; raising it lets multiple jobs run in parallel, which is useful when building several microservices in the same instance.

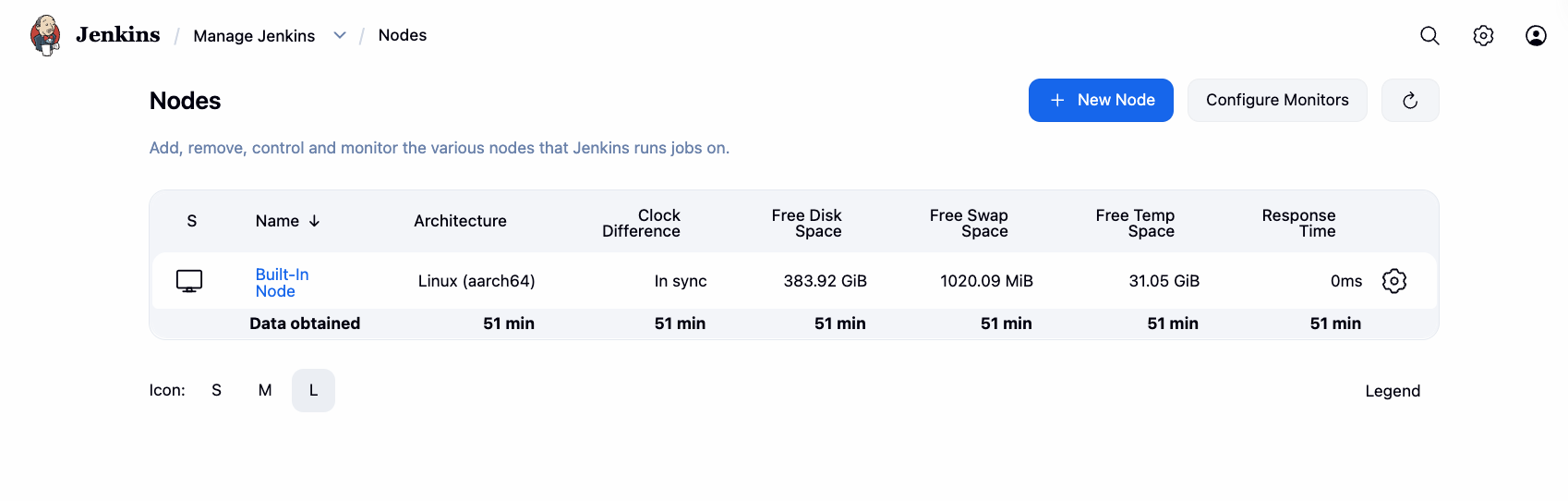

Manage Jenkins → Nodes → Built-In Node → Configure → Number of executors → 10

3. Credentials

Before creating pipelines that push Docker images, store the Docker Hub secret in Jenkins' credential store. Credentials are injected into pipelines at runtime — they are never written to disk or visible in logs⁵.

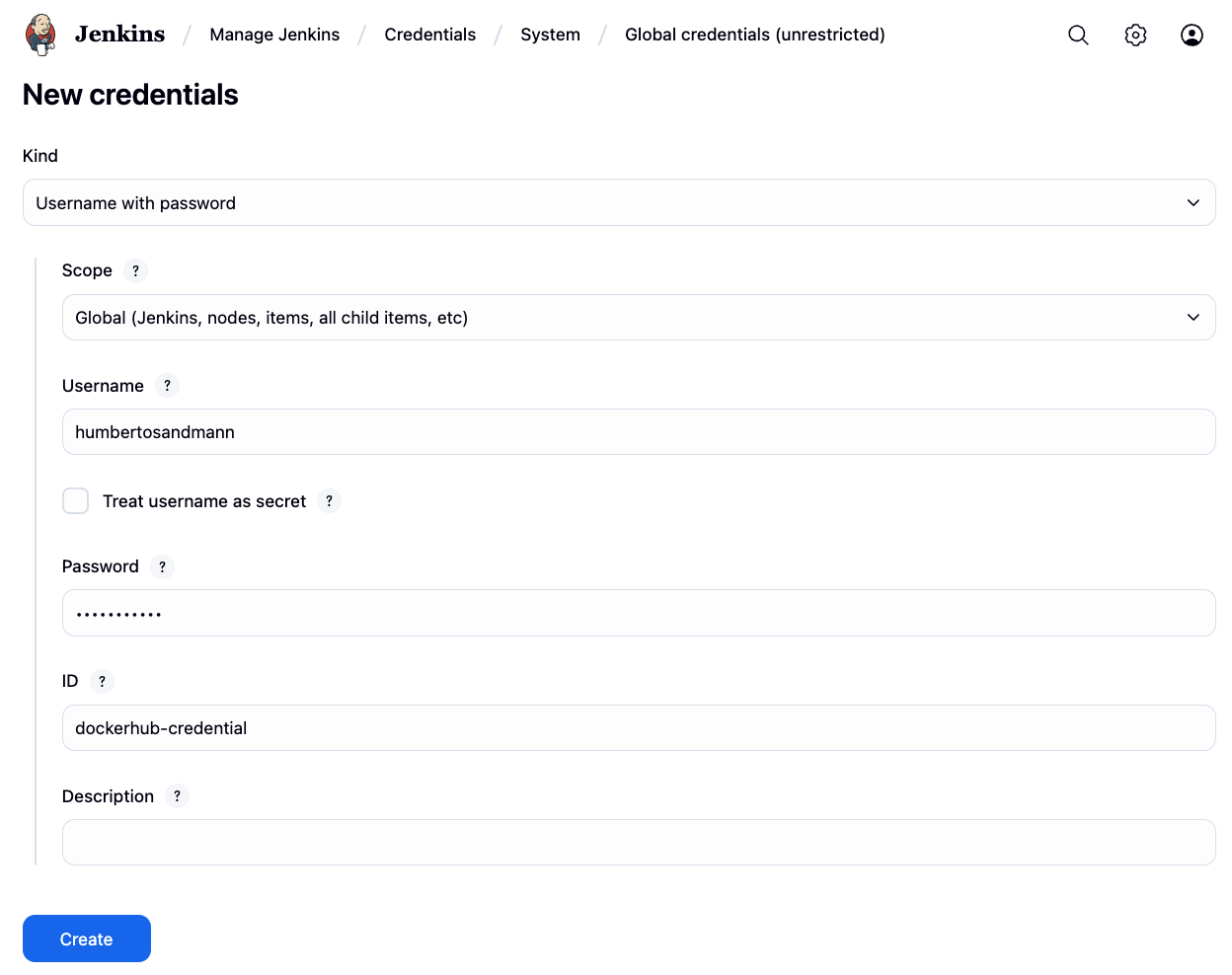

Manage Jenkins → Credentials → System → Global credentials → Add Credentials

4. Pipeline as Code

A Jenkinsfile describes the pipeline in a declarative DSL and lives in the root of the repository. Jenkins checks it out automatically when a build is triggered, so the pipeline evolves alongside the code⁷.

flowchart LR
    repo[Git Repository\nJenkinsfile] -->|SCM checkout| jenkins[Jenkins Job]
    jenkins --> s1[Stage: Build]
    s1 --> s2[Stage: Test]
    s2 --> s3[Stage: Build & Push Image]
    s3 --> s4[Stage: Deploy]

Jenkins supports two pipeline syntaxes:

The examples below use the declarative syntax.

5. Examples

auth — Build only

The first pipeline compiles the auth module and produces the artifact:

📁 api/
└── 📁 auth/
    └──  Jenkinsfile

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

pipeline {

    agent any

    stages {
        stage('Build') {
            steps {
                sh 'mvn -B -DskipTests clean install'
            }
        }
    }

}

The single Build stage runs mvn -B -DskipTests clean install. The -B flag enables batch mode (no interactive prompts), which is required in non-interactive CI environments.

Creating a Job

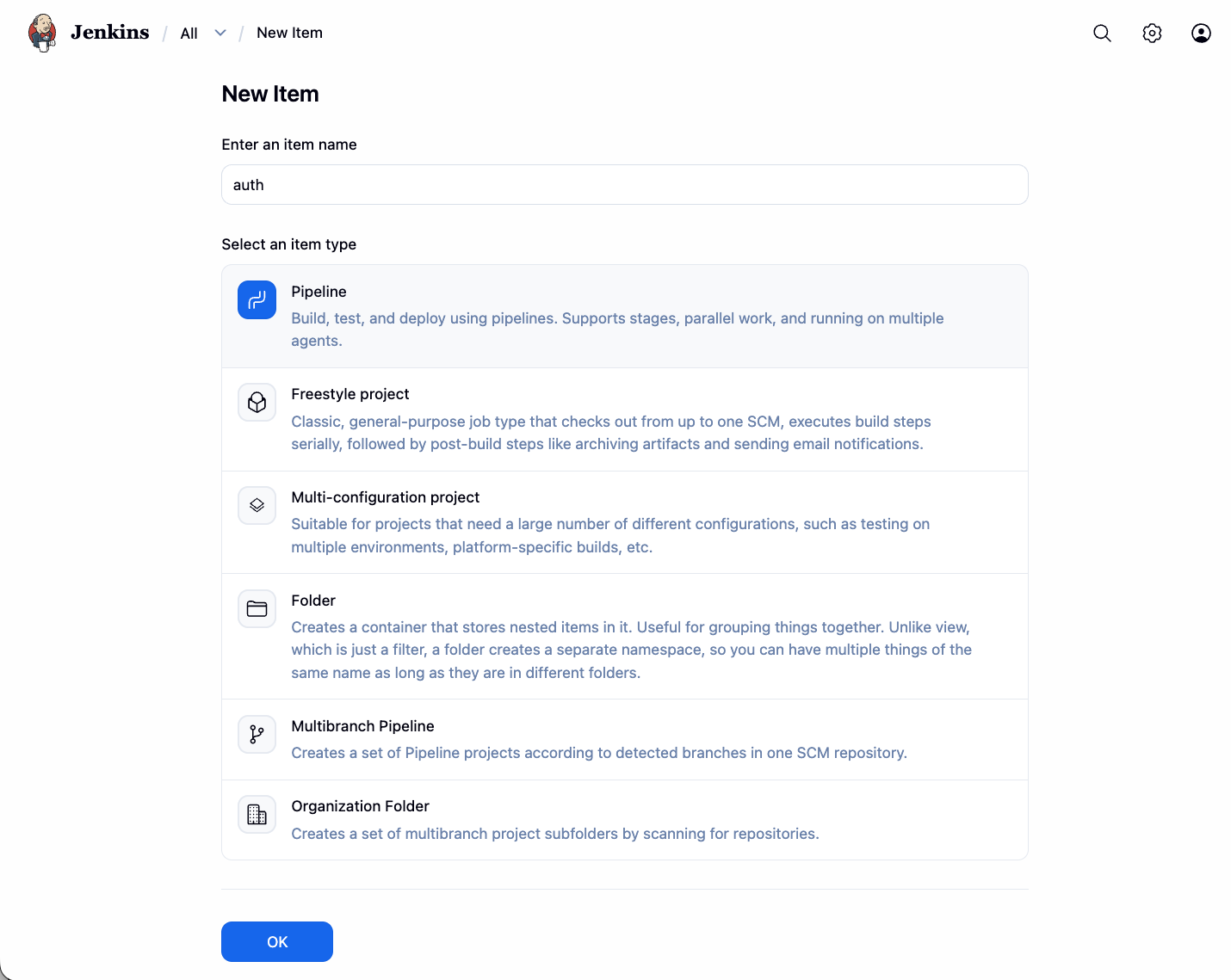

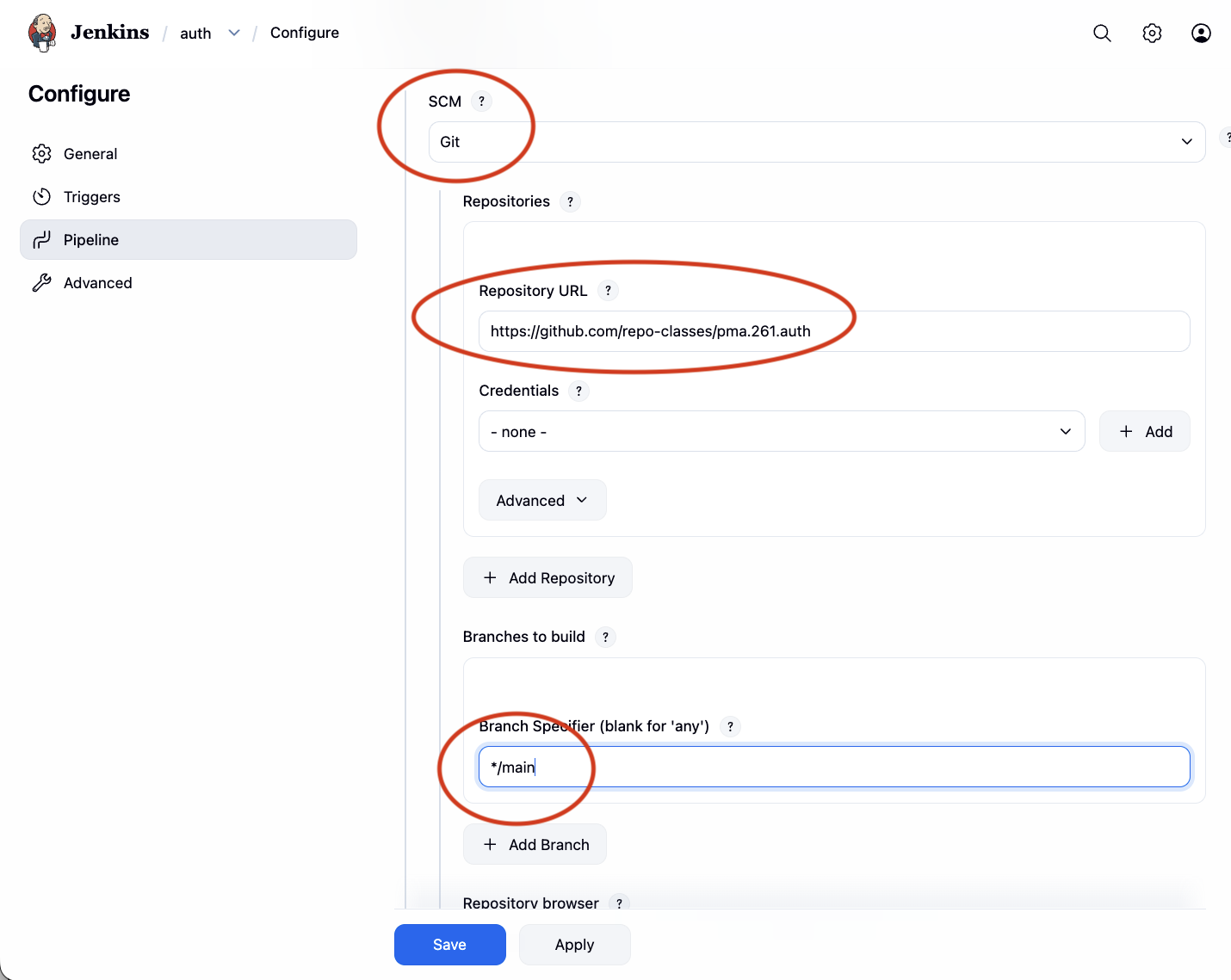

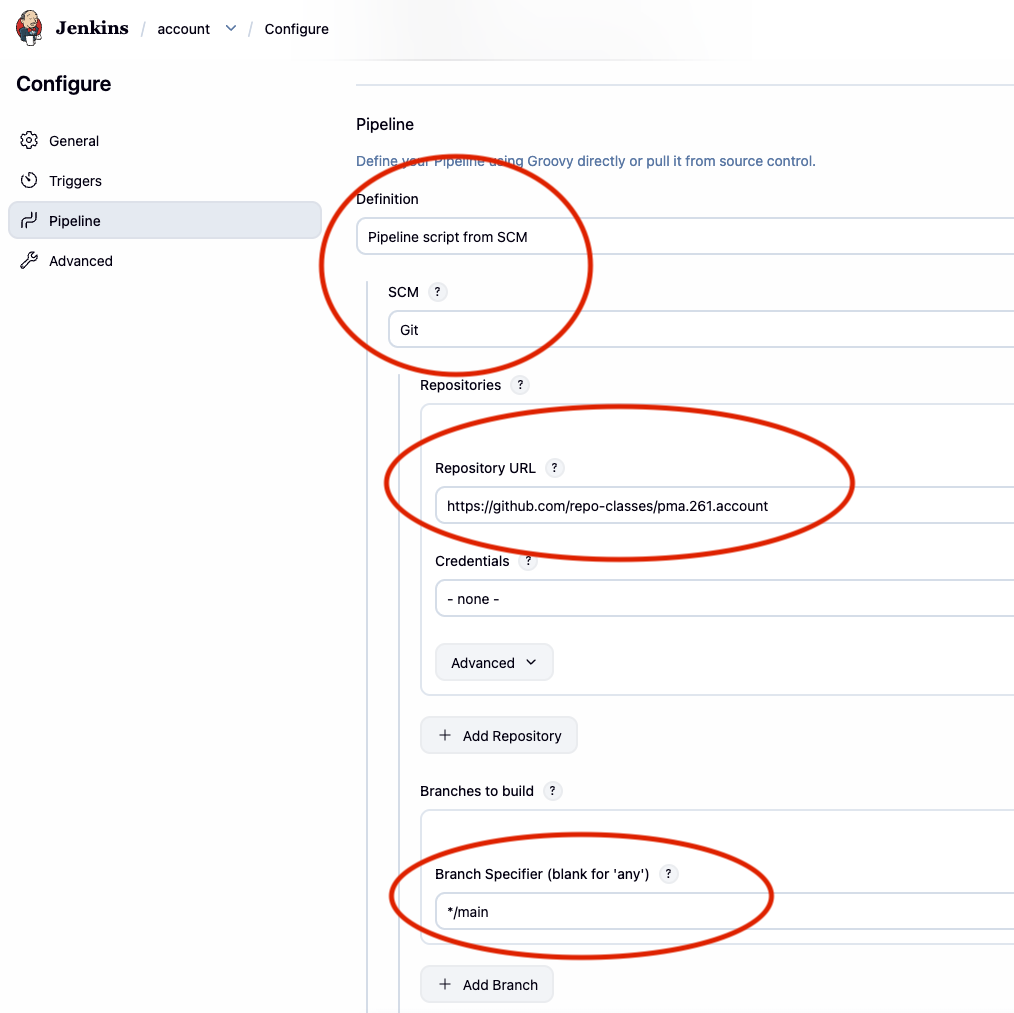

Create a New Item, choose the Pipeline type, and set the Definition to Pipeline script from SCM. Jenkins will clone the repository and read the Jenkinsfile on every build.

auth-service — Build, package, and push

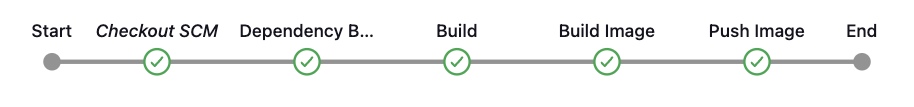

A complete pipeline that builds the service, creates a multi-platform Docker image, and pushes it to Docker Hub:

📁 api/
└── 📁 auth-service/
    └──  Jenkinsfile

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

pipeline {
    agent any
    environment {
        SERVICE = 'auth' # Name of the service being built
        NAME = "humbertosandmann/${env.SERVICE}" # Docker Hub repository name
    }
    stages {
        stage('Dependecies') {
            steps {
                build job: 'account', wait: true
                build job: 'auth', wait: true
            }
        }
        stage('Build') {
            steps {
                sh 'mvn -B -DskipTests clean package'
            }
        }
        stage('Build & Push Image') {
            steps {
                withCredentials([usernamePassword(
                    credentialsId: 'dockerhub-credential',
                    usernameVariable: 'USERNAME',
                    passwordVariable: 'TOKEN')])
                {
                    sh "docker login -u $USERNAME -p $TOKEN"
                    sh "docker buildx create --use --platform=linux/arm64,linux/amd64 --node multi-platform-builder-${env.SERVICE} --name multi-platform-builder-${env.SERVICE}"
                    sh "docker buildx build --platform=linux/arm64,linux/amd64 --push --tag ${env.NAME}:latest --tag ${env.NAME}:${env.BUILD_ID} -f Dockerfile ."
                    sh "docker buildx rm --force multi-platform-builder-${env.SERVICE}"
                }
            }
        }
    }
}

Walkthrough

environment block

environment {
    SERVICE = 'auth'
    NAME    = "humbertosandmann/${env.SERVICE}"
}

Declares two pipeline-wide variables. NAME is the fully-qualified Docker Hub repository. Referencing env.SERVICE inside NAME avoids duplicating the service name.

Dependencies stage

stage('Dependencies') {
    steps {
        build job: 'account', wait: true
        build job: 'auth',    wait: true
    }
}

Triggers upstream Jenkins jobs before proceeding. wait: true blocks until each job completes successfully, guaranteeing that dependency artifacts are up to date before the current service is built.

Build stage

sh 'mvn -B -DskipTests clean package'

Compiles the project and produces the runnable JAR. Tests are intentionally skipped here — add a separate Test stage with mvn test if you want the pipeline to enforce test results.

Build & Push Image stage

withCredentials([usernamePassword(
    credentialsId: 'dockerhub-credential',
    usernameVariable: 'USERNAME',
    passwordVariable: 'TOKEN')]) {

    sh "docker login -u $USERNAME -p $TOKEN"
    sh "docker buildx create --use \
          --platform=linux/arm64,linux/amd64 \
          --node multi-platform-builder-${env.SERVICE} \
          --name multi-platform-builder-${env.SERVICE}"
    sh "docker buildx build \
          --platform=linux/arm64,linux/amd64 \
          --push \
          --tag ${env.NAME}:latest \
          --tag ${env.NAME}:${env.BUILD_ID} \
          -f Dockerfile ."
    sh "docker buildx rm --force multi-platform-builder-${env.SERVICE}"
}

• withCredentials — injects the Docker Hub token stored in step 3 into the build environment. The values are masked in all Jenkins logs⁵.
• docker buildx — creates a BuildKit builder that cross-compiles images for both linux/arm64 (Apple Silicon, AWS Graviton) and linux/amd64 (standard x86-64)⁸.
• Dual tags — :latest provides a stable reference; :<BUILD_ID> pins a specific Jenkins build so any image can be traced back to its source commit.
• The builder instance is removed after the push to free up system resources.
